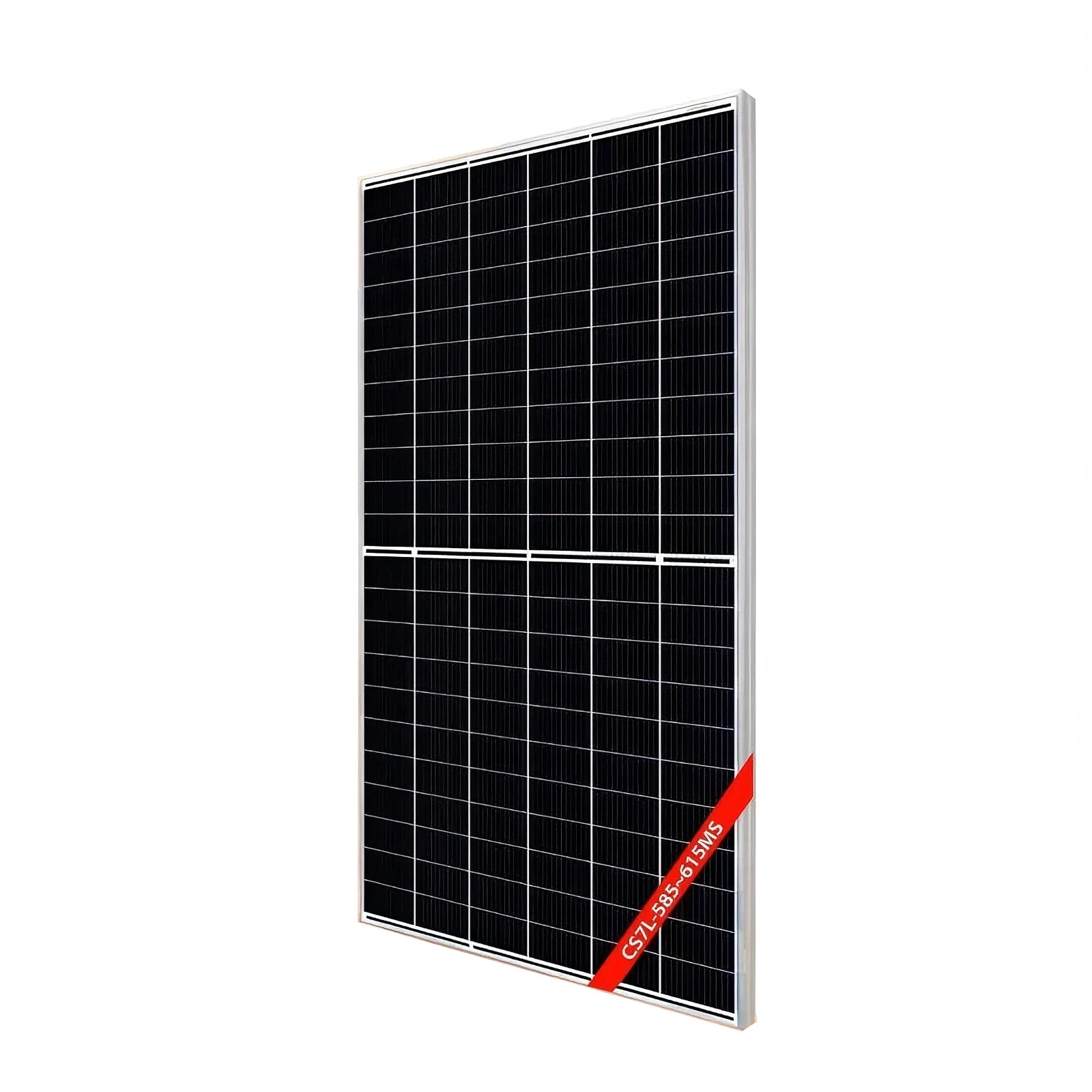

Model No.

CS7L-580MS-R

CS7L-585MS-R

CS7L-590MS-R

CS7L-595MS-R

CS7L-600MS-R

CS7L-605MS-R

CS7L-610MS-R

Warranty

Product Warranty

12 Years

Power Warranty

25 Years of 84.8% Output Power

Electrical Data at STC

Maximum Power (Pmax)

580 Wp

585 Wp

590 Wp

595 Wp

600 Wp

605 Wp

610 Wp

Voltage at Maximum Power (Vmpp)

34.1 V

34.3 V

34.5 V

34.7 V

34.9 V

35.1 V

35.3 V

Current at Maximum Power (Impp)

17.02 A

17.06 A

17.11 A

17.15 A

17.2 A

17.25 A

17.29 A

Open Circuit Voltage (Voc)

40.5 V

40.7 V

40.9 V

41.1 V

41.3 V

41.5 V

41.7 V

Short Circuit Current (Isc)

18.27 A

18.32 A

18.37 A

18.42 A

18.47 A

18.52 A

18.57 A

Panel Efficiency

20.50%

20.70%

20.80%

21%

21.20%

21.40%

21.60%

Power Tolerance (Positive)

2%

2%

2%

2%

2%

2%

2%

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

435 Wp

439 Wp

442 Wp

446 Wp

450 Wp

454 Wp

457 Wp

Voltage at Maximum Power (Vmpp)

32 V

32.2 V

32.3 V

32.5 V

32.7 V

32.9 V

33.1 V

Current at Maximum Power (Impp)

13.6 A

13.62 A

13.7 A

13.73 A

13.77 A

13.8 A

13.93 A

Open Circuit Voltage (Voc)

38.3 V

38.5 V

38.7 V

38.8 V

39 V

39.2 V

39.4 V

Short Circuit Current (Isc)

14.73 A

14.77 A

14.8 A

14.85 A

14.89 A

14.93 A

14.97 A

Temperature

41±3 °C

Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

40~85 °C

Temperature Coefficient of Pmax

0.34 %/°C

Temperature Coefficient of Voc

0.26 %/°C

Temperature Coefficient of Isc

0.05 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

30 A

Material Data

Panel Dimension (H/W/D)

2172x1303x35 mm

Weight

31 kg

Cell Type

PERC

Cell Number

120

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium Alloy

Junction Box Diodes

3

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

6 mm2

Cable Length

460 mm
